WATER METER SHAFTS

PLASTIC WATER METER SHAFTS

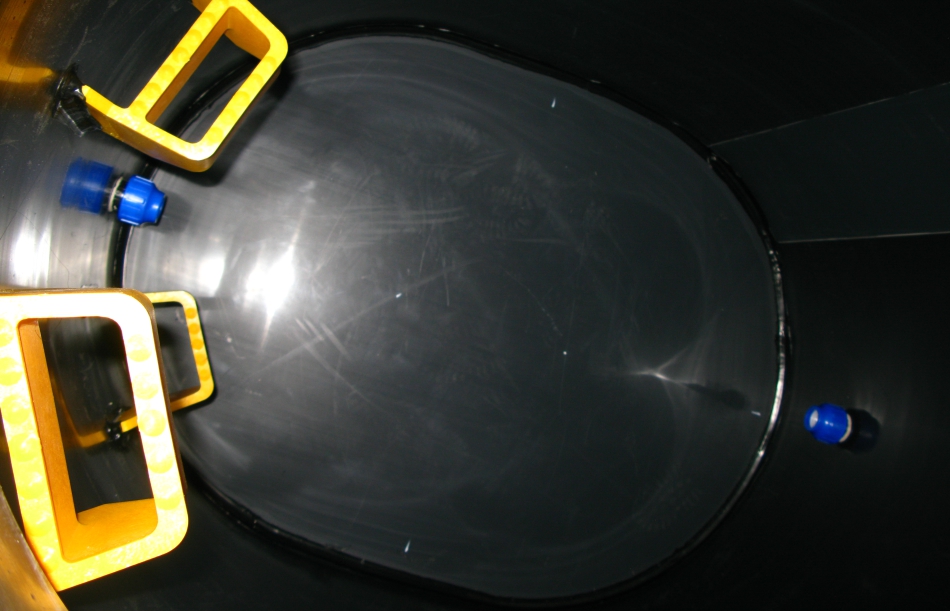

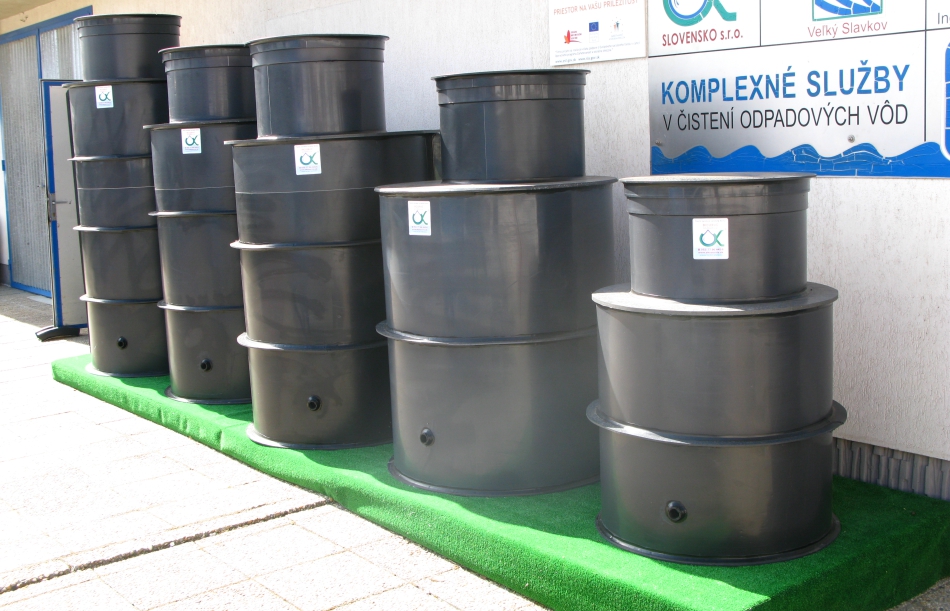

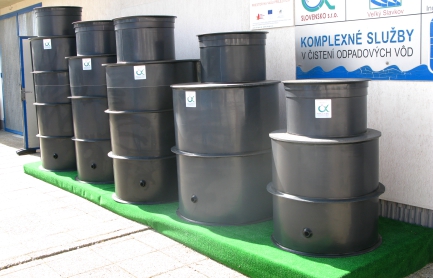

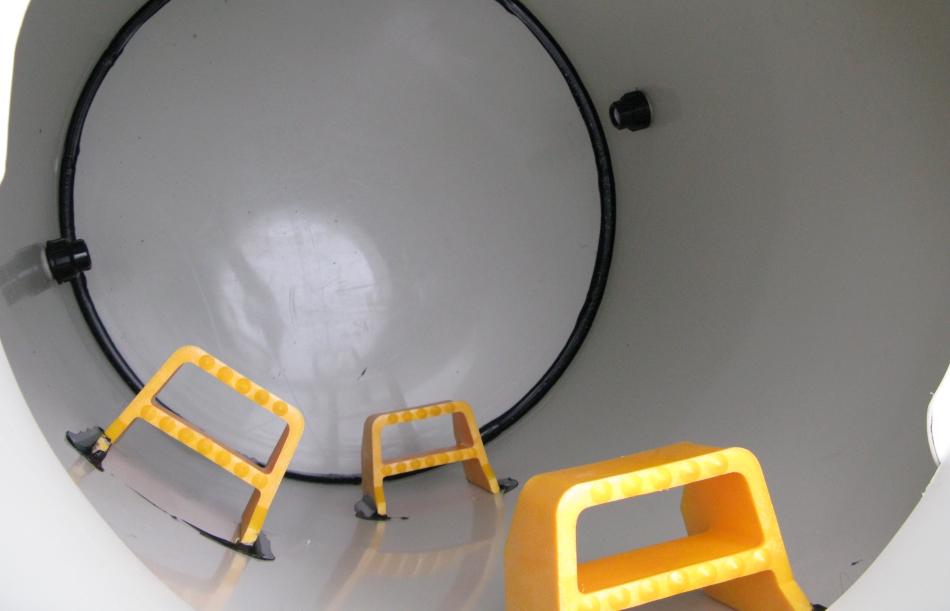

Plastic water meter shafts are used to install water meters or other measurement devices. Produced of PP, PE, reinforced to resist the pressure from the ambient terrain and equipped with the connecting pieces to connect the piping to water meter. Shafts include stairs or a ladder.

APPLICATION

The shafts intended to use in houses, cottages or other buildings for water consumption measurement.

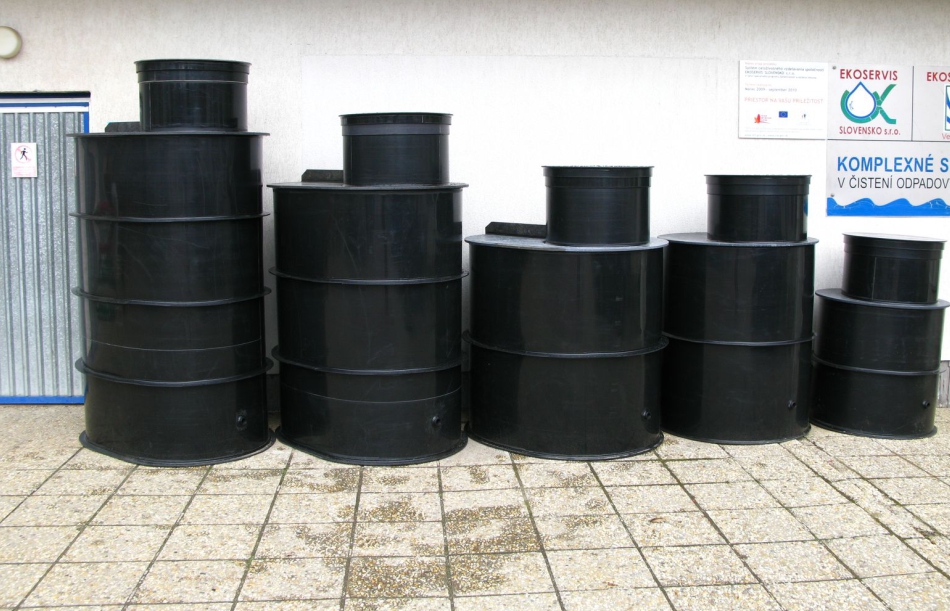

DIMENSIONS

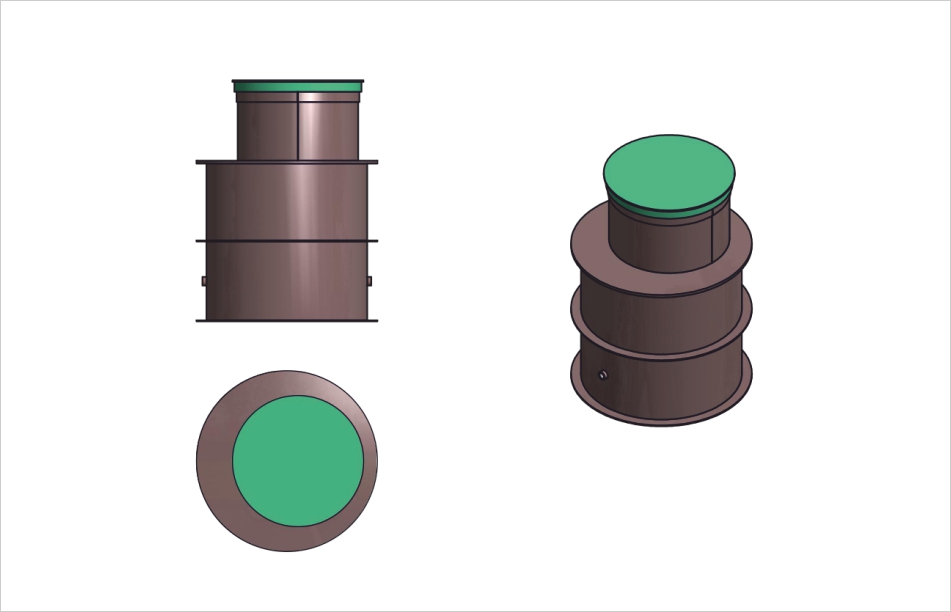

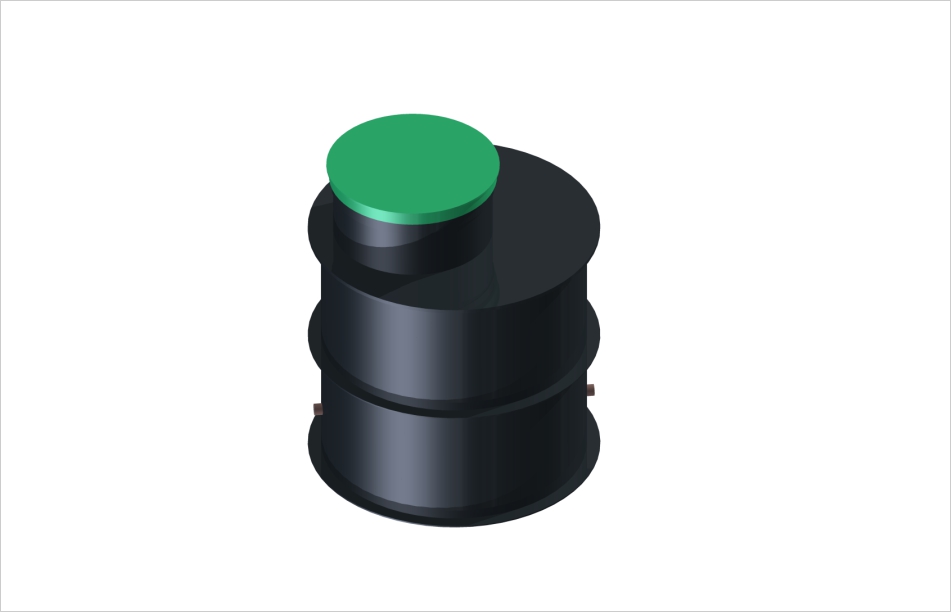

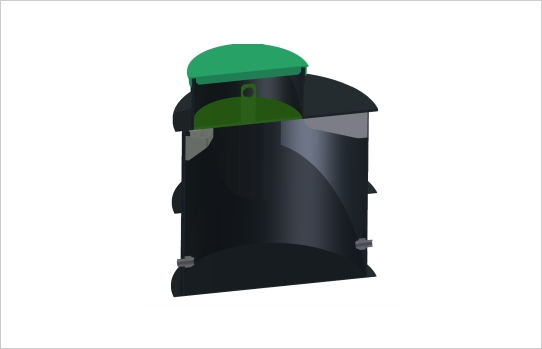

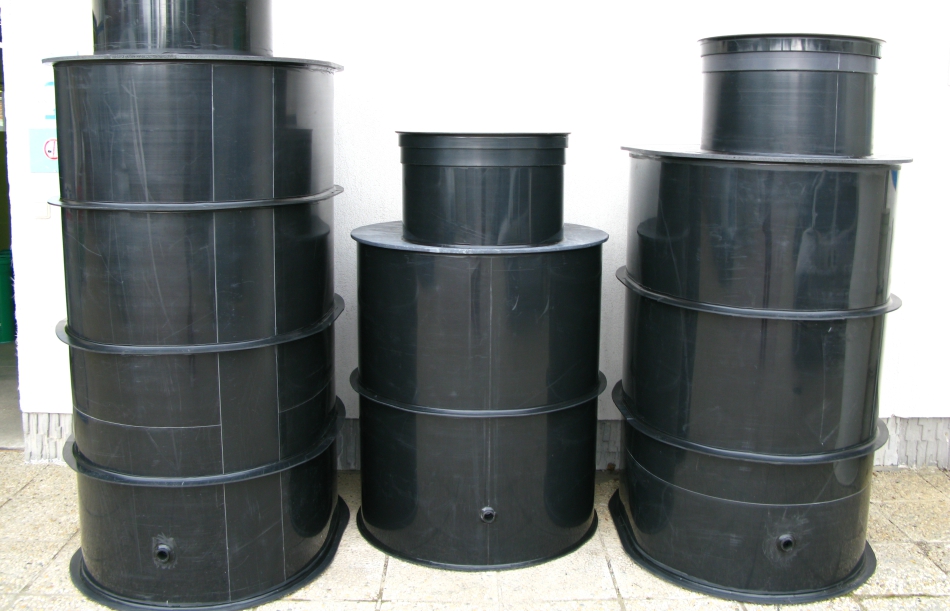

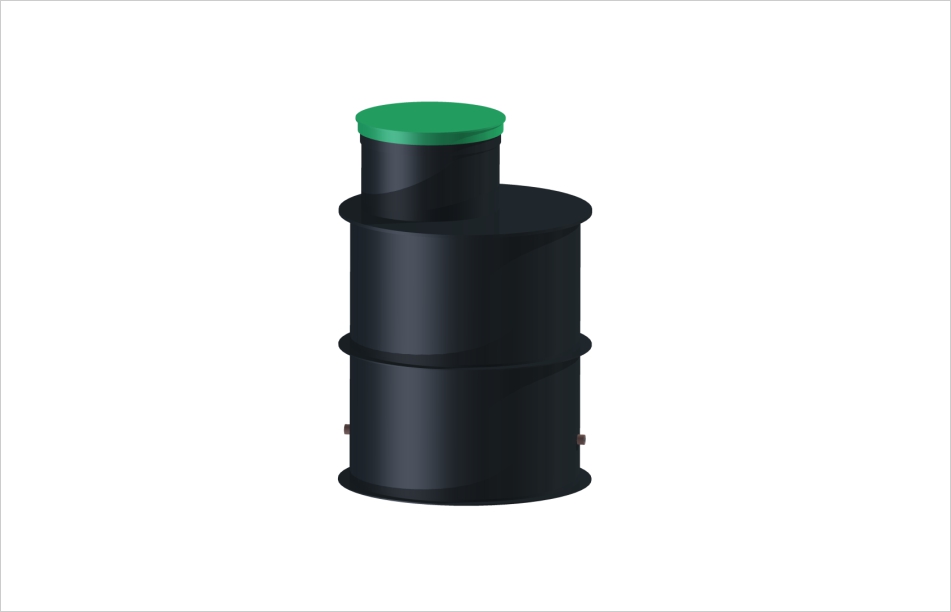

Circular shaft

• • CIRCLE 1 - ø 800 mm, height 1200 mm
• • CIRCLE 2 – ø 1000 mm, height 1600 mm
• • CIRCLE 3 – ø 1200 mm, height 1800 mm
• • CIRCLE 4 – ø 1000 mm, height 1300 mm
• • entry chimney with cover ø 600 mm

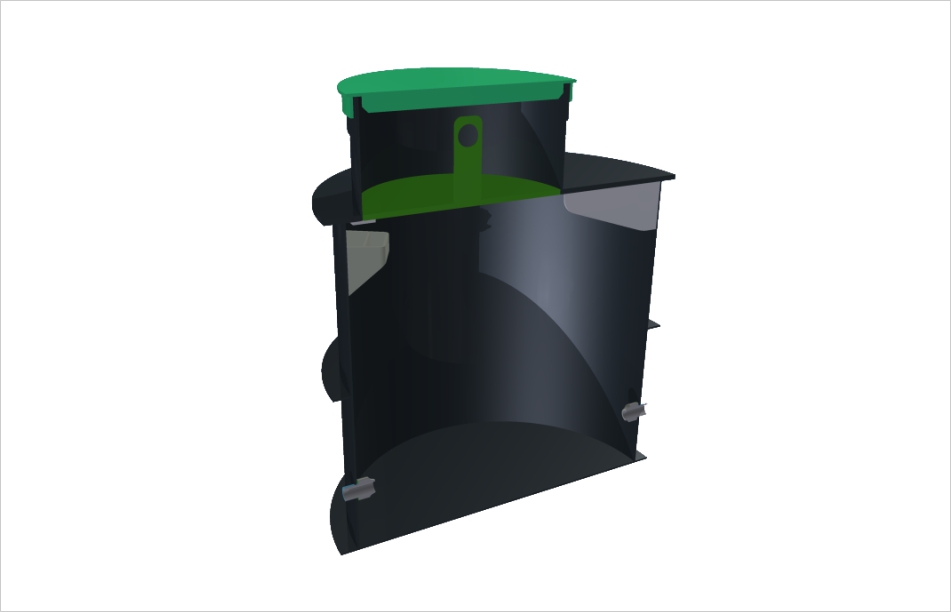

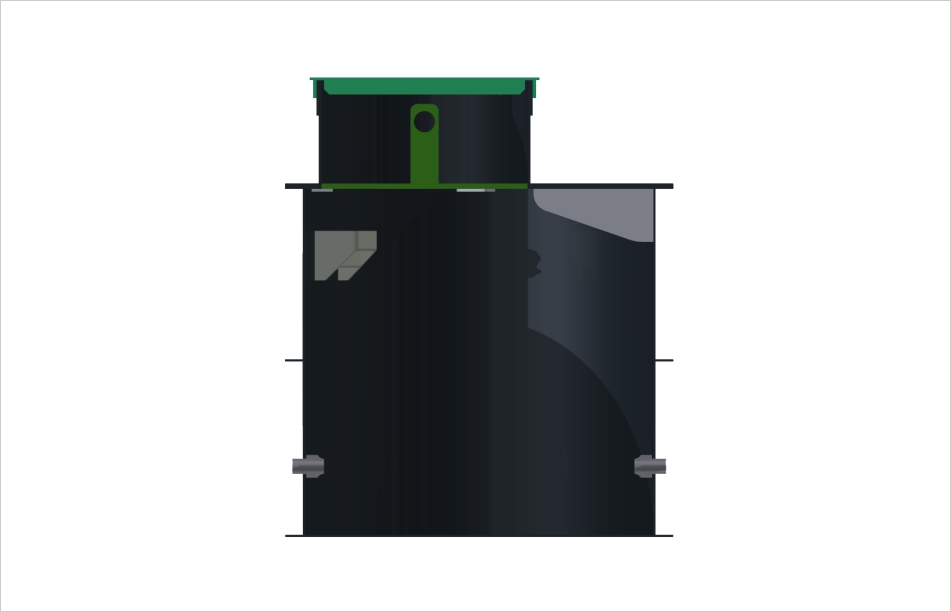

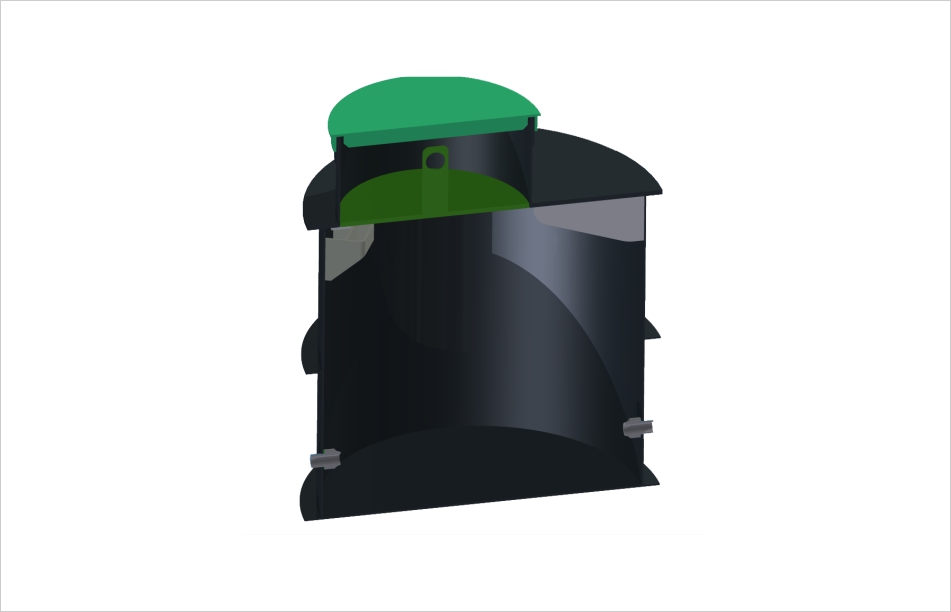

Oval segment shaft

• • OVAL 1 – ø 900-1200 mm, height 1600 mm
• • OVAL 2 – ø 900-1200 mm, height 1900 mm
• • OVAL 3 – ø 900-1200 mm, height 2200 mm
• • OVAL 4 – ø 900-1200 mm, height 1800 mm
• • OVAL 5 - ø 900-1200 mm, height 2150 mm
• • entry chimney with cover ø 600 mm

ADVANTAGES

low weight, easy handling, transportation and installation

TECHNICAL DESIGN

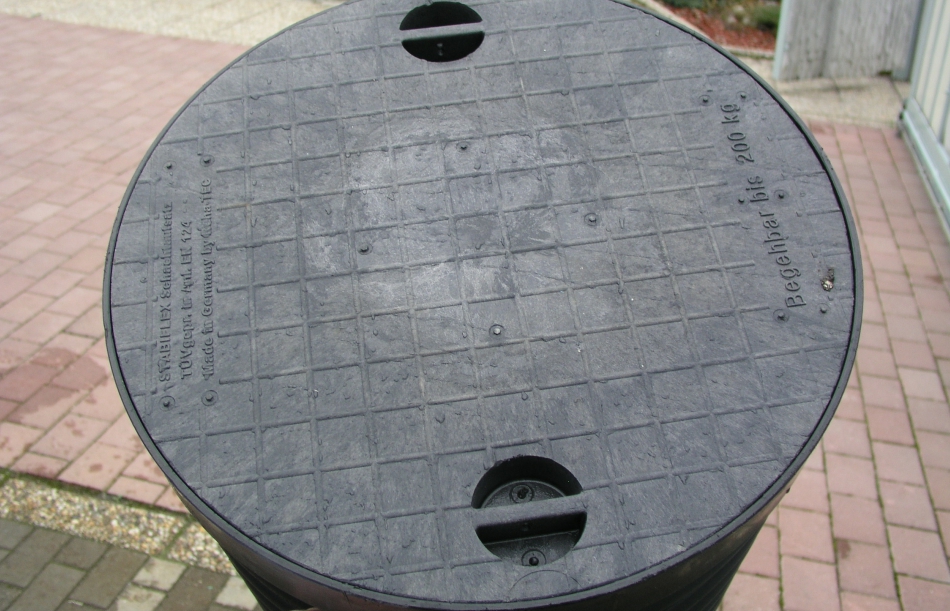

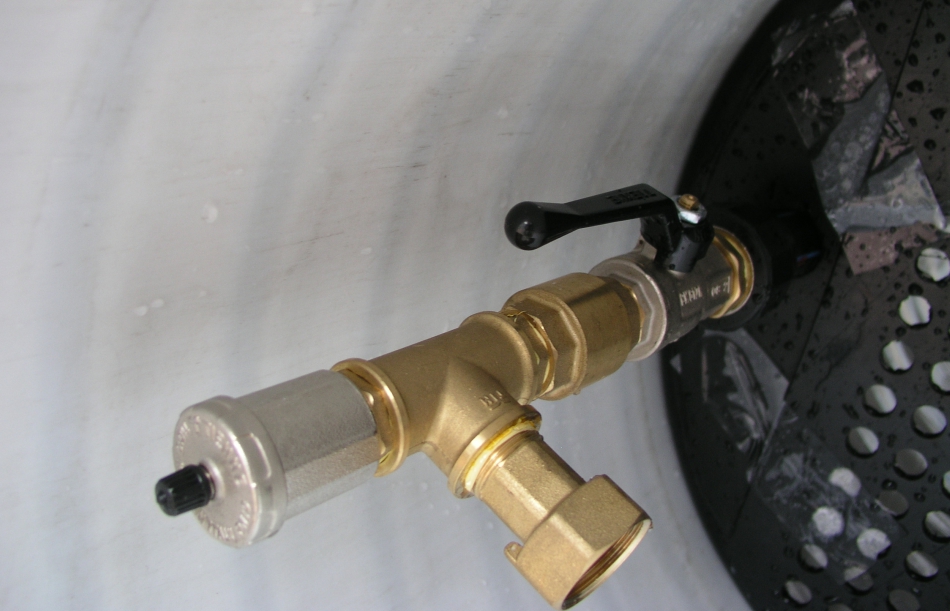

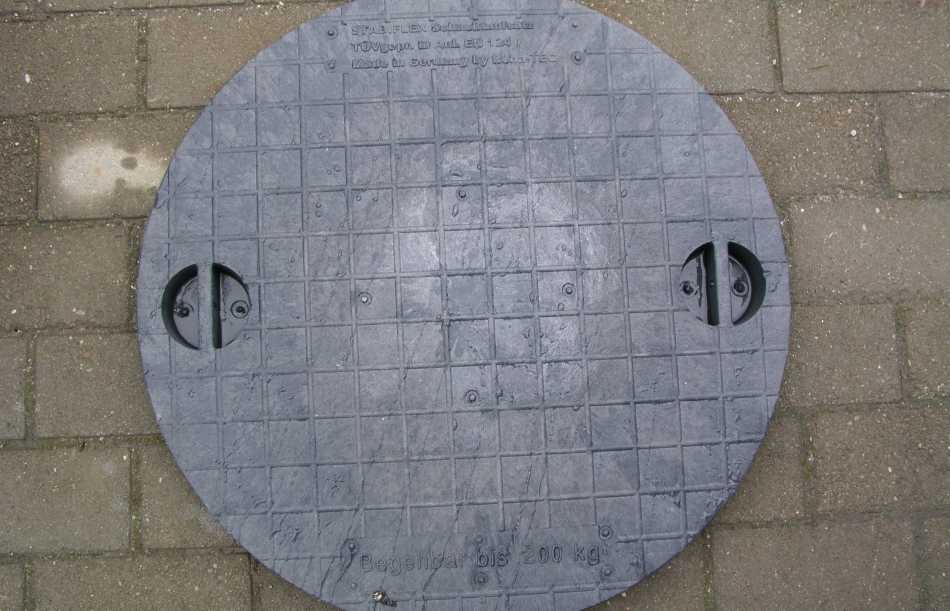

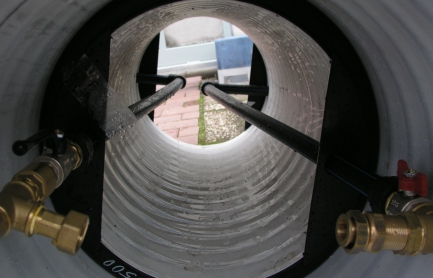

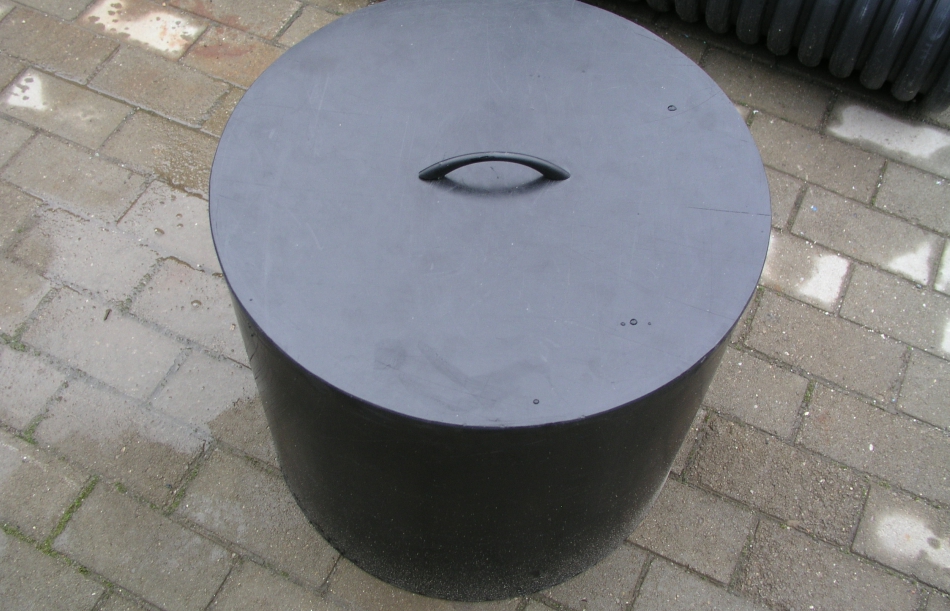

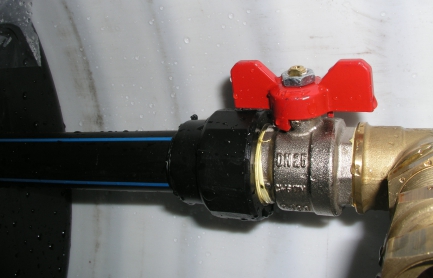

couplings for water meter, plastic cover
