WELL SHAFTS

PLASTIC WELL SHAFTS

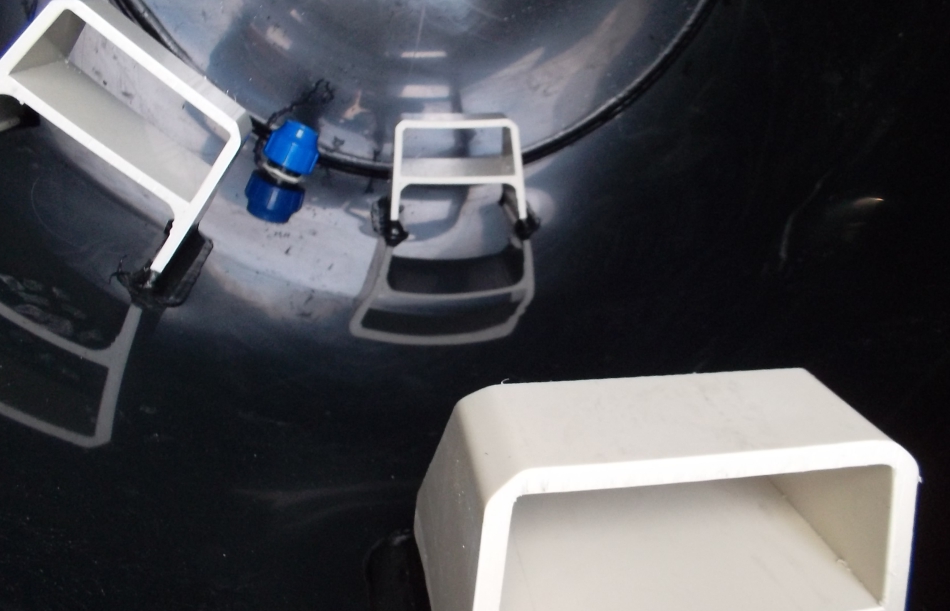

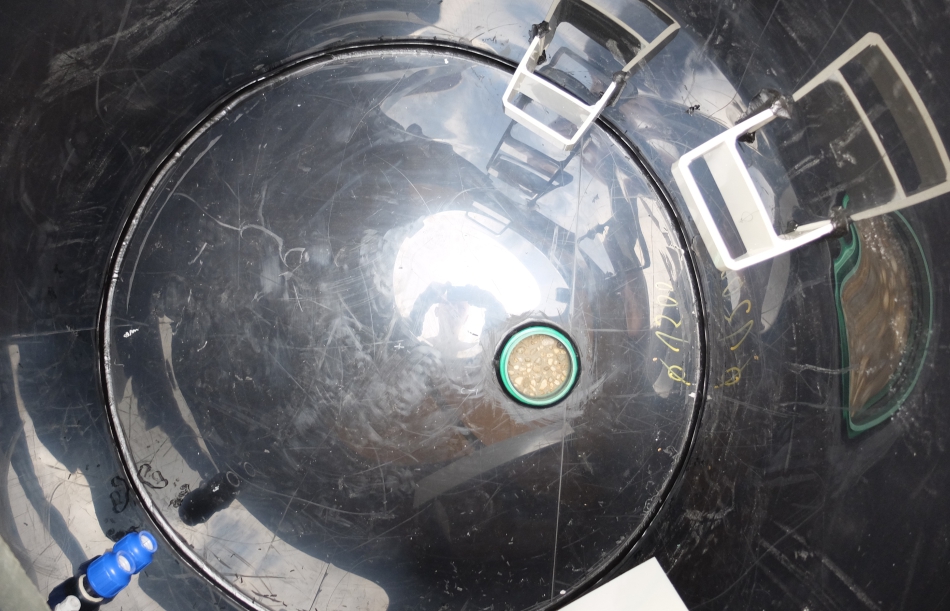

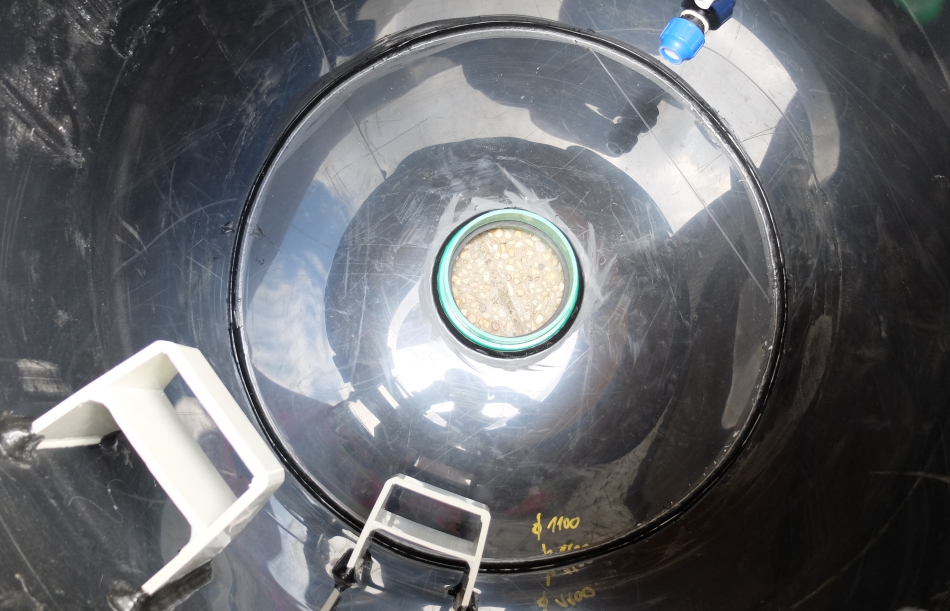

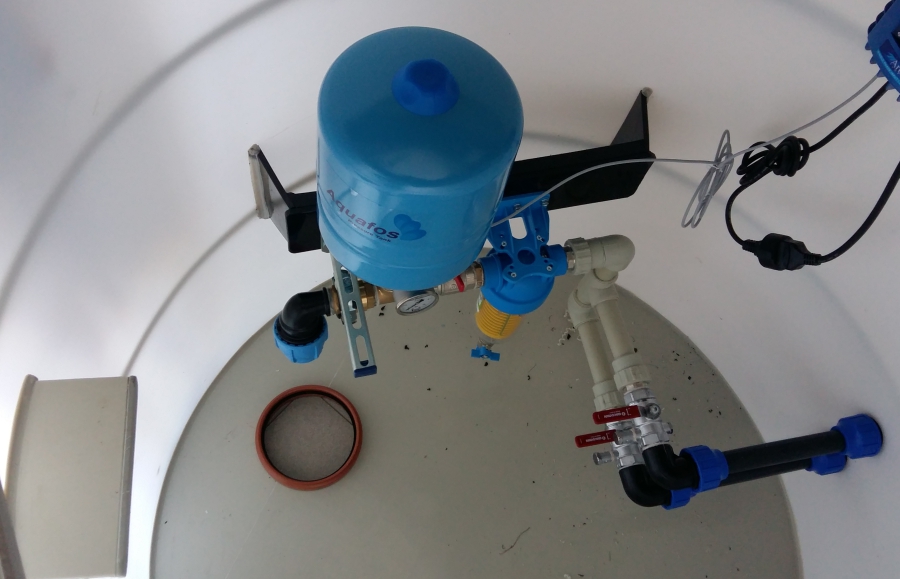

Well plastic shaft is dedicated for upper ending of the well borehole or for an immersion pump technology installation. Produced of PP, PE, reinforced against the ambient terrain pressure, fitted with coupling for discharge of water from the well, transition to electric cabling for an immerse pump and neck to the borehole – according to the borehole dimension. The shaft includes stairs or a ladder.

The shaft is dedicated for drilled wells of various dimensions or for installation of accessories of an immerse pump. We can customize the shaft size as per the customers requirements.

SHAFT TYPES

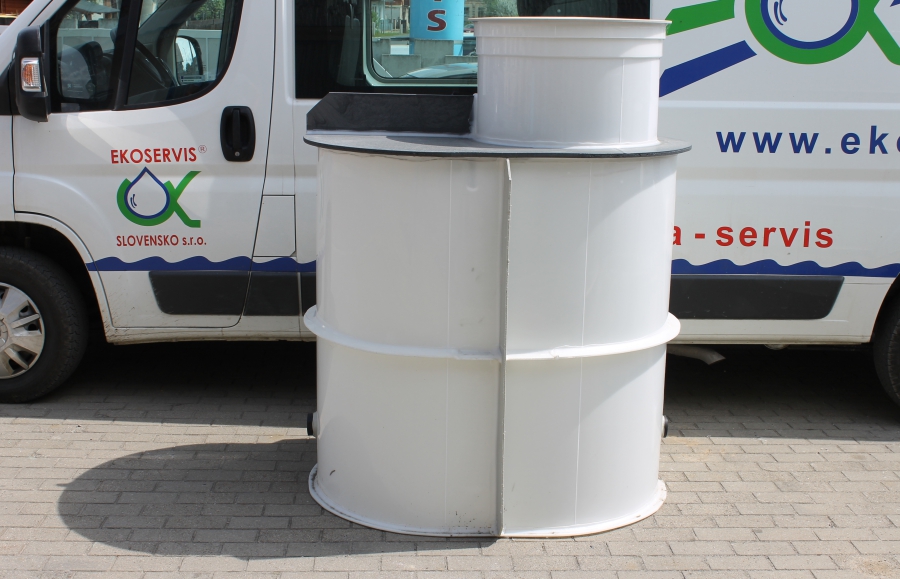

Circular well shaft

• • CIRCLE 1 – ø 800 mm, height 1200 mm
• • CIRCLE 2 – ø 1000 mm, height 1600 mm
• • CIRCLE 3 – ø 1200 mm, height 1800 mm
• • CIRCLE 4 – ø 1000 mm, height 1300 mm
• • entry chimney with cover ø 600 mm

Studňová šachta oválna

• • OVAL 1 – ø 900-1200 mm, height 1600 mm
• • OVAL 2 – ø 900-1200 mm, height 1900 mm
• • OVAL 3 – ø 900-1200 mm, height 2200 mm
• • OVAL 4 – ø 900-1200 mm, height 1800 mm
• • OVAL 5 - ø 900-1200 mm, height 2150 mm
• • entry chimney with cover ø 600 mm
