CRUDE OIL SEPARATORS

CRUDE OIL SEPARATORS

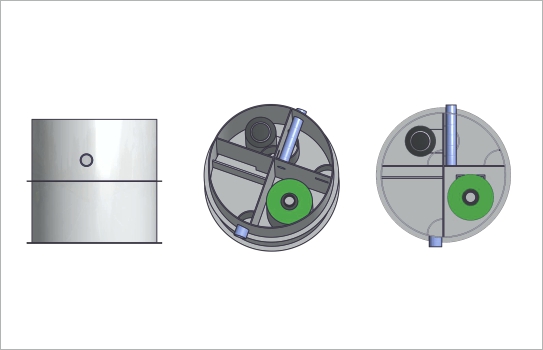

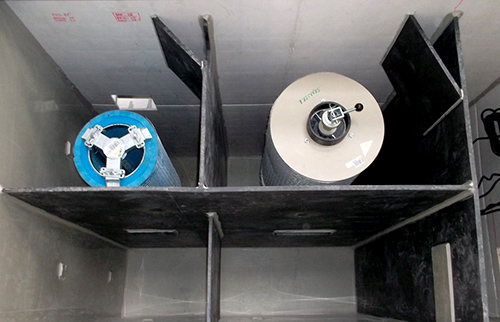

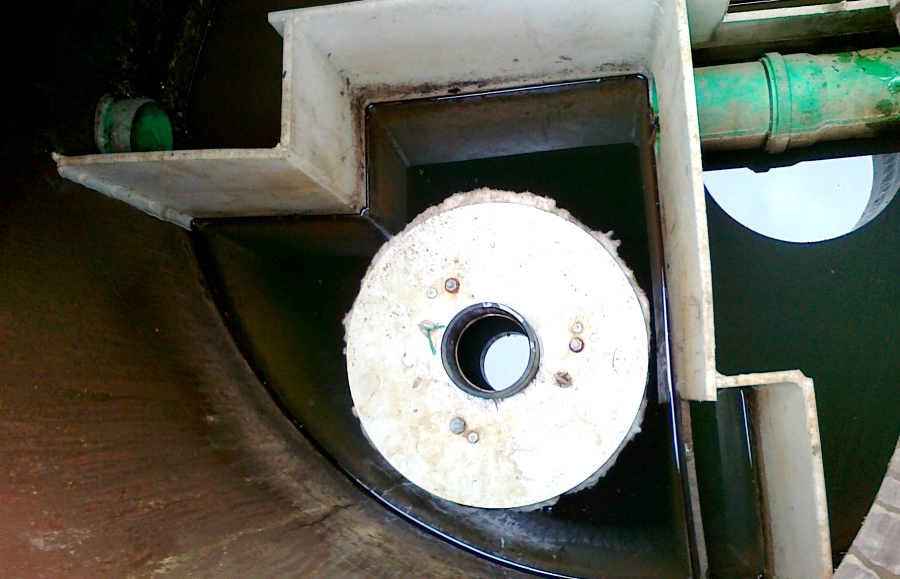

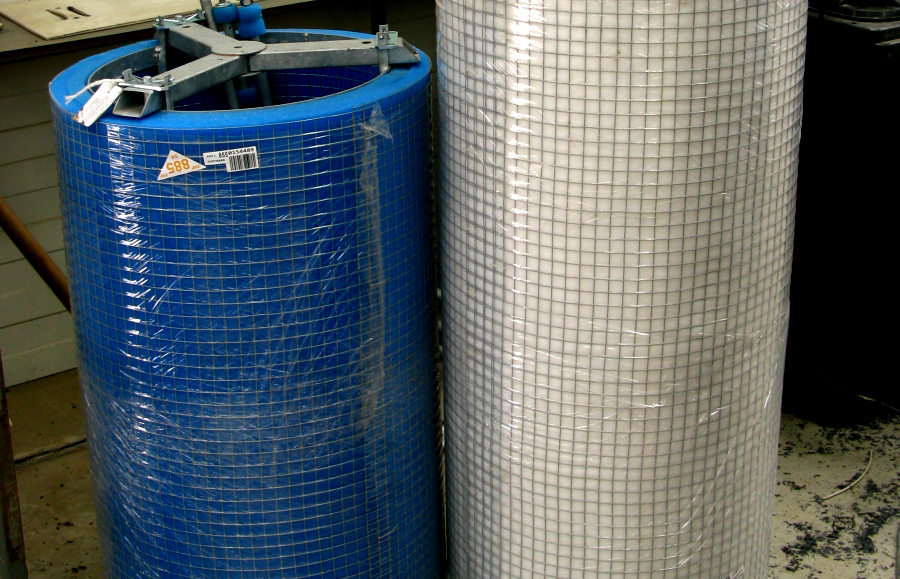

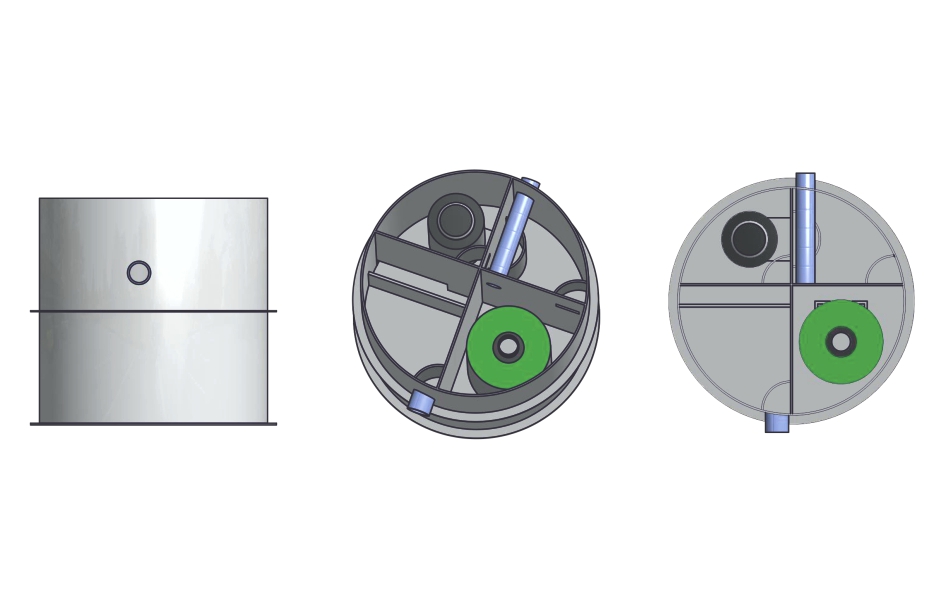

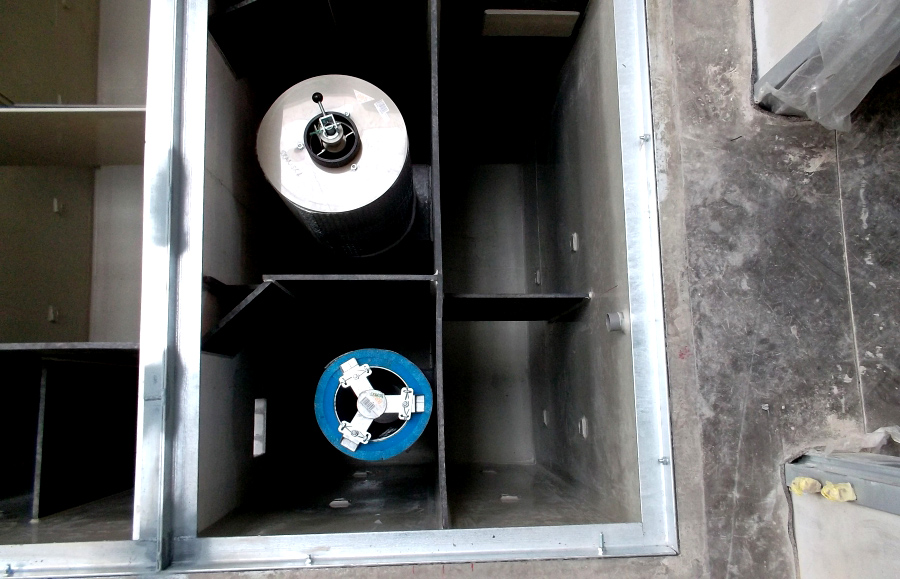

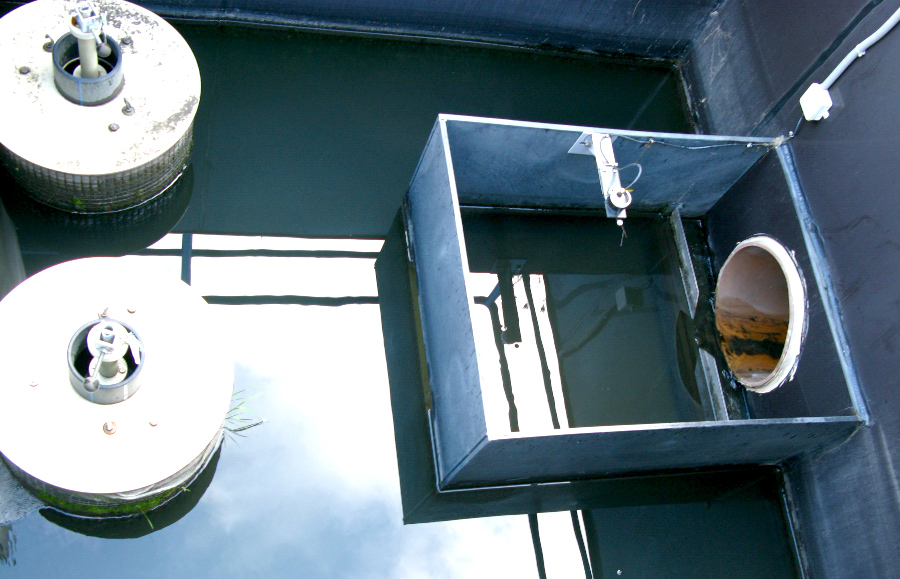

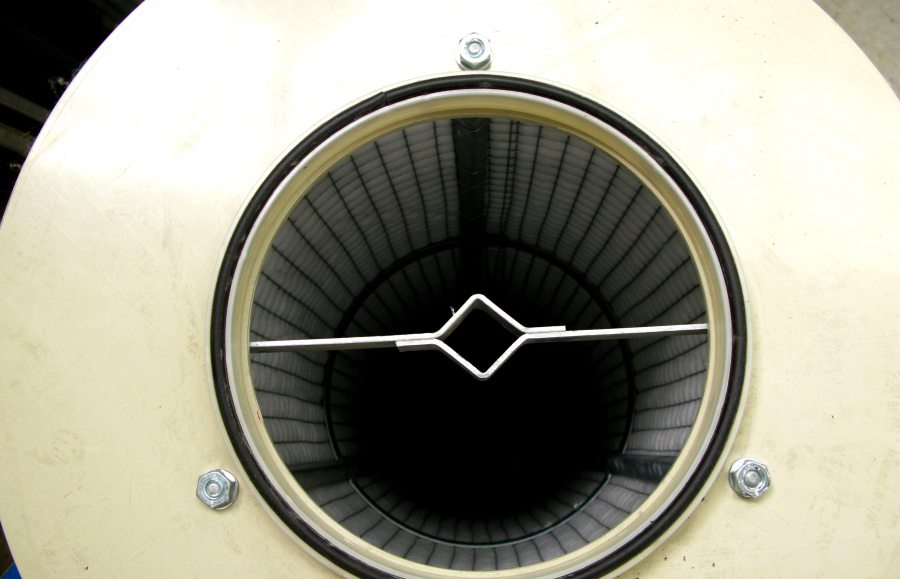

Oil separator is a plastic tank with separation walls split to four sections that include inlet, contact, coalescent separator KF, GN and sorbtion filter SFF with cleaned water outlet. Treated waste water are gravity outlet to sewage pipeline network or to the recipient. Dedicated to treat water contaminated by free crude oil substances or their unstable oil emulsions from parkings, compacted areas, workshops, garages, fuel pumping stations ….

TREATED WATER QUALITY, GUARANTEES

Crude oil, i.e. non-polar exctractable substances ( NES) concentration in cleaned water downstream the separator is 5 mg.l^-1 , after cleaning at sorbtion filter the value is < 1 mg.l^-1. The product complies to DIN 1999, STN 75 65 51.

ADVANTAGES

• • any location (roads, built-in or non-built-in area)
• • quick installation (2 -3 days)
• • high efficiency
• • long service life
• • easy service and maintenance

DIMENSIONS

Technical data

Type size KGO		1	3	5	10	15	20	30	40	50	75
Coalescent filter		KF-1	KF-3	KF-5	KF-10	KF-15	KF-20	KF-30	KF-40	KF-50	KF-75
Sorbtion filter		SFF 3	SFF 3	SFF 5	SFF 10	SFF 15	SFF 20	SFF 30	SFF 40	SFF 40	SFF 40
Max. flow	l.s-1	1	3	5	10	15	20	30	40	50	75
Tank diameter	m	1,0	1,2	2,0	2,0	2,2	2,5	2,5	2,0	2,5	2,5
Tank height H	m	1,1	1,2	1,6	1,6	1,6	1,6	2,6	2,6	2,6	2,6
Number of tanks		1	1	1	1	1	1	1	2	2	2
Inlet /DN/	mm	90/110	90/110	90/110	140/160	140/160	200/315	200/315	300/315	300/315	300/315
