GREASE TRAPS FOR CANTEENS, CAFETERIAS AND SCHOOLS

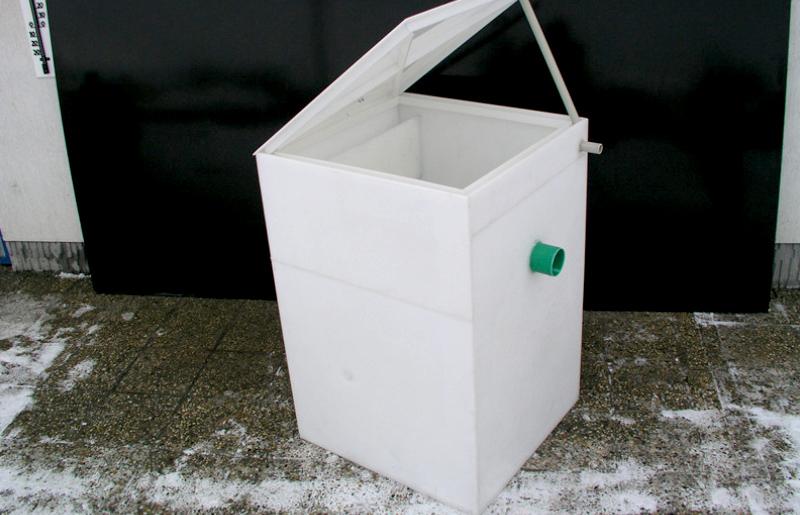

GREASE TRAP EKO – OTO

Two-stage oil traps collect and remove the non-emulgated oil in waste water. Dedicated for canteen and restaurant facilities, meat processing facilities, etc...
Grease and oil system „EKO-OTO“ is dedicated for gathering and removal of grease and oils from waste water such as canteen and restaurant facilities, meat processing facilities and similar. The trap prevents from grease and oil exceeding the limits entering the sewage pipeline network and waste water treatment plants. EKO OTO are installed as upstream units to separate sewage pipeline located as close as possible to the contamination source.

ADVANTAGES

• • fast construction
• • high efficiency
• • easy to access area for grease take-off
• • low cost of civil works
• • long service life, easy servicing

DIMENSIONS

Technical and technology parameters

EKO – OTO	output	meals	Tank dimensions (mm)			inlet (mm)	outlet (mm)
	l.s-1	pcs.d-1	L	Š	H	ø/Vp	ø/Vo
EKO – OTO 1	1	200	940	900	1370	100/950	100/900
EKO – OTO 2	2	400	1350	900	1370	100/950	100/900
EKO – OTO 3	4	800	1840	900	1370	100/950	100/900
EKO – OTO 4	6	1800	1800	1200	1280	150/950	150/900
EKO – OTO 5	8	2000	2000	1200	2000	150/1750	150/1700
